// Introduction //

PVC-U pipes and fittings for industrial applications are made by polyvinyl chloride (PVC) resins and the additives necessary for the manufacture and performance requirements of GB/T4219-2008 Unplasticized polyvinyl chloride (PVC-U) pipes for industrial applications.
// Specifications //
PVC-U pipe specifications for industrial applications
Nominal outside diameter mm |
Nominal pressure | ||||||
S20 | S16 | S12.5 | S10 | S8.0 | S6.3 | S5 | |
Wall thickness mm | .. | .. | .. | .. | .. | .. | |
20 | 2 | ||||||
25 | 2 | 2.3 | |||||
32 | 2 | 2.4 | 2.9 | ||||
40 | 2 | 2.4 | 3 | 3.7 | |||
50 | 2 | 2.4 | 3 | 3.7 | 4.6 | ||
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | |
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | |
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | |
110 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | |
125 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | |
140 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 |
Note:
1. considering safety, min. wall thickness ≥2.0mm.
2. besides other regulations, specifications should meet GB/T 10798.
// Characteristics //
1. Weight light, load and transport portable
PVC-U pipe proportion is only steel pipe and iron pipe 1/5, concrete pipe 1/3. Pipe weight is about the same specification and length ductile iron pipe 1/4, concrete pipe 1/10. Therefore, PVC-U pipe is load and transport portable and can reduce transport cost.1/2-1/3.
2. Resistant acid, no rusty, no corrode treatment.
3. Smaller flowing resistance
PVC-U pipe inside wall is smooth and smaller flowing resistance, manning coefficient is 0.008-0.009, CONVEY water is more than iron pipe 20%, and more than concrete pipe 40%.
4. Service life
Traditional pipe service life is 20-30years. PVC-U pipe service life is at least 50yearsat a set temperature and pressure..
5. installing simple
PVC-U pipe weight light and convenient, has some ductile. For installing ,comparable with other pipes, pipe system is more complex PVC-U pipe virtues is more prominent.
6. Repair easily
PVC-U pipe repairing cost is only ductile pipe or concrete pipe 30%.
// Performance and parameters //

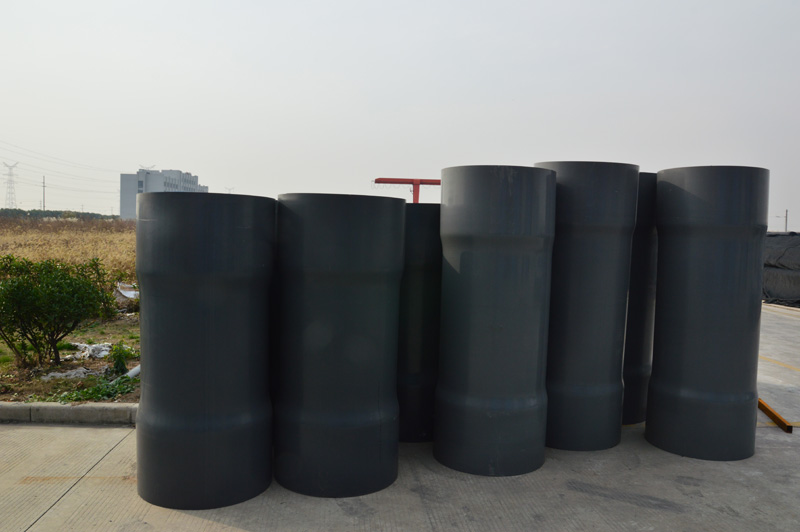

PVC-U Industrial Pipe color
Color is generally gray. It may be agreed upon between the purchaser and the seller.
PVC-U Industrial Pipe Appearance
The internal and external surfaces of the pipe shall be smooth, clean and free from scoring, cavities and other surface detects. The material shall not contain visible impurities. The ends of the pipe shall be cut cleanly and square to the axis of the pipe.
PVC-U Industrial Pipe physical performance
item |
technical index |
Density,ρ, kg/m3 |
I 330-I 460 |
Vicat softening temperature, ℃ |
≥80℃ |
Longitudinal reversion, % |
≤5% |
Methylene chloride immersion test |
15℃,15min, surface no change |
PVC-U Industrial Pipe mechanics performance
Item |
Test parameter |
Requirement |
||
Temperature, ℃ |
Hoop stress, MPa |
Time, h |
||
Hydrostatic test |
20 |
40.0 |
1 |
No damage, no leakage |
20 |
34.0 |
100 |
||
20 |
30.0 |
1000 |
||
60 |
10.0 |
1000 |
||
drop hammer impact test |
0℃(-5℃) |
TIR≤10% |
// Application fields //
PVC pipe is a kind of macromolecule polymer, the molecules containing polar radical chlorine, thus chemically extremely stable, and has excellent corrosion resistant. PVC pipe can resist common acid, alkaline, alkaline solution, but will be corrupted by the aromatic, hydrocarbon, ketone, ester and other chemical substances.
Note: when transporting chemical, pipes should perform Corrosion test.
// Installing //
Baosu PVC-U pipes installing methods: T-S jointing and butt weld, R-R elastic rubber sealing ring jointing.
Solvent cement contain solvent should not react with the delivery chemical fluid.
Elastic sealing ring to be selected according to the requirements of the sealing ring of synthetic rubber.
