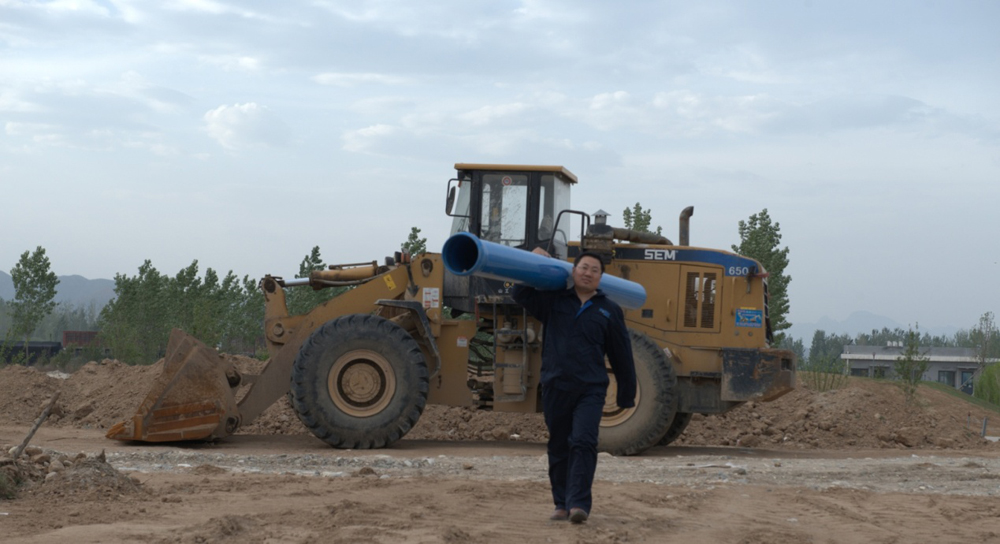

Due to the super strength, the pipe wall can be much thinner than PVC-U pipes and PE pipes. The mass per meter of TaijiBlue® PVC-O pipes for the same specification is only 1/2 of PVC-U pipes and 1/10-1/4 of ductile iron pipes. So TaijiBlue® PVC-O pipes are much lighter and much easier to handle and install, which reduce installation cost, labor injury, and increase installation speed.
Weight Comparison(kg/m)
dn | PVC-O | PE100 | Ductile Iron | PVC-U | PVC-M |
110(100) | 1.1 | 2.2 | 15.5 | 2.2 | 1.8 |
160(150) | 2.2 | 4.7 | 22.6 | 4.7 | 3.7 |
225(200) | 4.3 | 9.2 | 31.2 | 9.0 | 7.3 |
250(250) | 5.3 | 11.3 | 41.7 | 11.2 | 9.1 |
315(300) | 8.4 | 18.3 | 52.7 | 17.9 | 14.4 |
355(350) | 10.7 | 23.3 | 65.5 | 22.6 | 18.3 |
400(400) | 13.5 | 29.5 | 78.3 | 28.6 | 23.2 |
450(450) | 17.2 | 37.4 | 93.1 | 36.2 | 29.3 |
500(500) | 21.2 | 46.2 | 108.1 | 44.6 | 36.0 |
630(600) | 33.5 | 73.4 | 142.0 | 71.0 | 57.3 |
Note :1. PVC-O pipe: class450,C=1.6, 2.plastic pipe:1.0MPa, 3.DI:K9. |
Weight comparison(PVC-O pipes / other pipes)
dn | PVC-O | PE100 | Ductile Iron | PVC-U | PVC-M |
110(100) | 1 | 2.0 | 14.1 | 2.0 | 1.6 |
160(150) | 1 | 2.1 | 10.3 | 2.1 | 1.7 |
225(200) | 1 | 2.1 | 7.2 | 2.1 | 1.7 |
250(250) | 1 | 2.1 | 7.8 | 2.1 | 1.7 |
315(300) | 1 | 2.2 | 6.3 | 2.1 | 1.7 |
355(350) | 1 | 2.2 | 6.1 | 2.1 | 1.7 |
400(400) | 1 | 2.2 | 5.8 | 2.1 | 1.7 |
450(450) | 1 | 2.2 | 5.4 | 2.1 | 1.7 |
500(500) | 1 | 2.2 | 5.1 | 2.1 | 1.7 |
630(600) | 1 | 2.2 | 4.2 | 2.1 | 1.7 |
Note :1.PVC-O pipe: class450,C=1.6, 2.plastic pipe:1.0MPa, 3.DI:K9. |
